THE FLEET

CH-47D

Max take off weight (with external load) 50,000 lb 22,680 kg
Empty standard weight 23,700 lb. 11,750 kg
Useful load 26,300 lb. 11,930 kg
Cargo hook capacity 26,000 lb. 11,793 kg

ENGINE SPECS
2 T55-GA-714
rating 10,138 combined SHP

FUEL SYSTEM
Total usable fuel 1,028 gal 4673 liters
Avg fuel consumption 329 gal/hr. 1,245 l/hr.
Endurance no reserve 2 hr. 45 min
Range without external load 360 NM
Approved fuels Jet A,B

CH-47D Series Helicopters are versatile machines for large external load missions. Our CH-47D Helicopters are modified for external load use and can carry up to 26,000 LB. Twin ECU controlled T55-GA-714 engines ensure power is not a problem. Modified flight controls including a canted cyclic, extended collective and rib rest give the pilot comfort at the controls. CH-47D helicopters are the nations largest, fastest, safest helicopters in use.

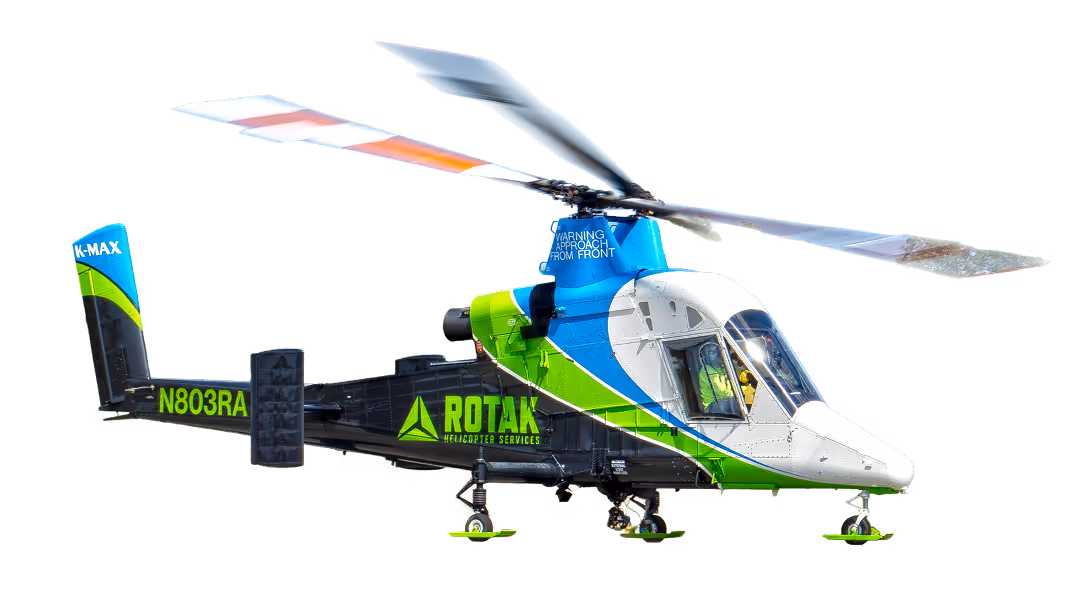

KMAX

Max gross weight (with external load) 12,000 lb 5,443 kg
Max take-off weight 7,000 lb 3,175 kg
Empty weight 5,145 lb. 2,334 kg
Useful load 6,855 lb. 3,109 kg
Cargo hook capacity 6,000 lb. 2,722 kg

ENGINE SPECS
Honeywell T53-17A1 gas turbine Thermodynamic rating
1,800 shaft horsepower

FUEL SYSTEM
Total usable fuel 219.5 gal 831 liters
Avg fuel consumption 85 gal/hr. 321.7 l/hr.
Endurance no reserve 2 hr. 41 min
Range with external load 200 NM
Range without external load 230 NM
Approved fuels Jet A, B, JP4

K-MAX helicopters are the industries best choice for repetitive precision external load operations in its weight class. A single engine, single transmission, and servo-flap controlled counter-rotating rotor system are some of the key factors in what make this unique machine capable of lifting more than its own empty weight. Cost effective, safe, reliable, and built to perform. Nothing compares to their rugged utilitarian design.
